New Generation

SynoSense Surveillance System

Fixed, Scalable, Powerful. An integrated early warning solution protecting perimeters up to 30 km radius. Detect, Identify, and Act.

View Specifications

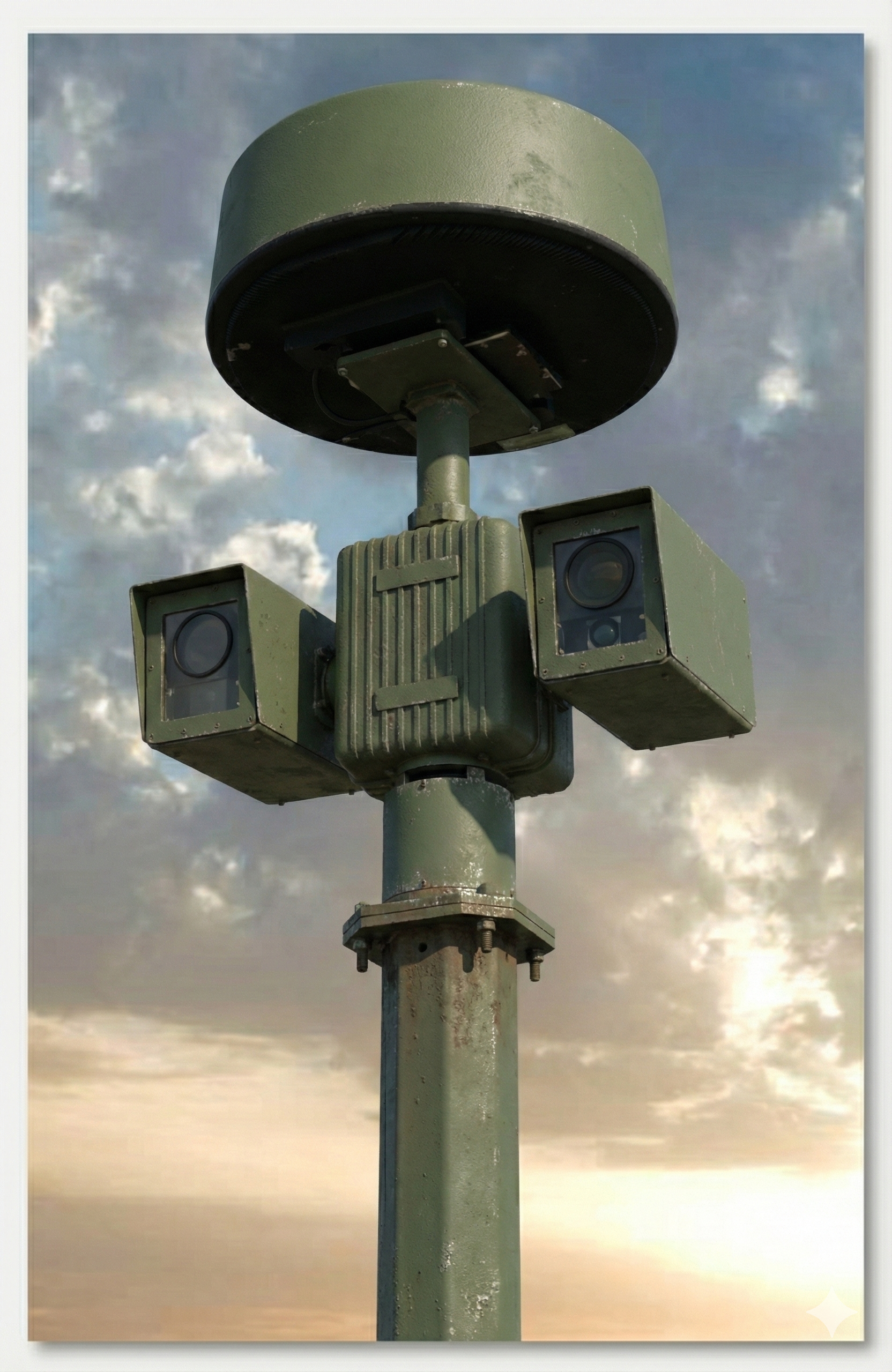

SynoSense Mobile System

Mobile Deployment Unit

Total Situational Awareness

SynoSense is a cutting-edge surveillance platform designed to protect critical infrastructure, borders, and designated areas of interest. By combining high-performance sensors with advanced command and control software, SynoSense provides a complete OODA (Observe, Orient, Decide, Act) loop capability.

Early Warning

Detect unauthorized movements up to 30km away. SynoSense acts as a force multiplier, providing 24/7 scanning of the perimeter.

Visual Verification

Seamlessly transition from detection to identification using the integrated long-range Day and Thermal (IR) cameras.

Command & Control

Operated via a ruggedized Ground Control Station (GCS) with intuitive mapping, recording, and slew-to-cue automation.

System Configurations

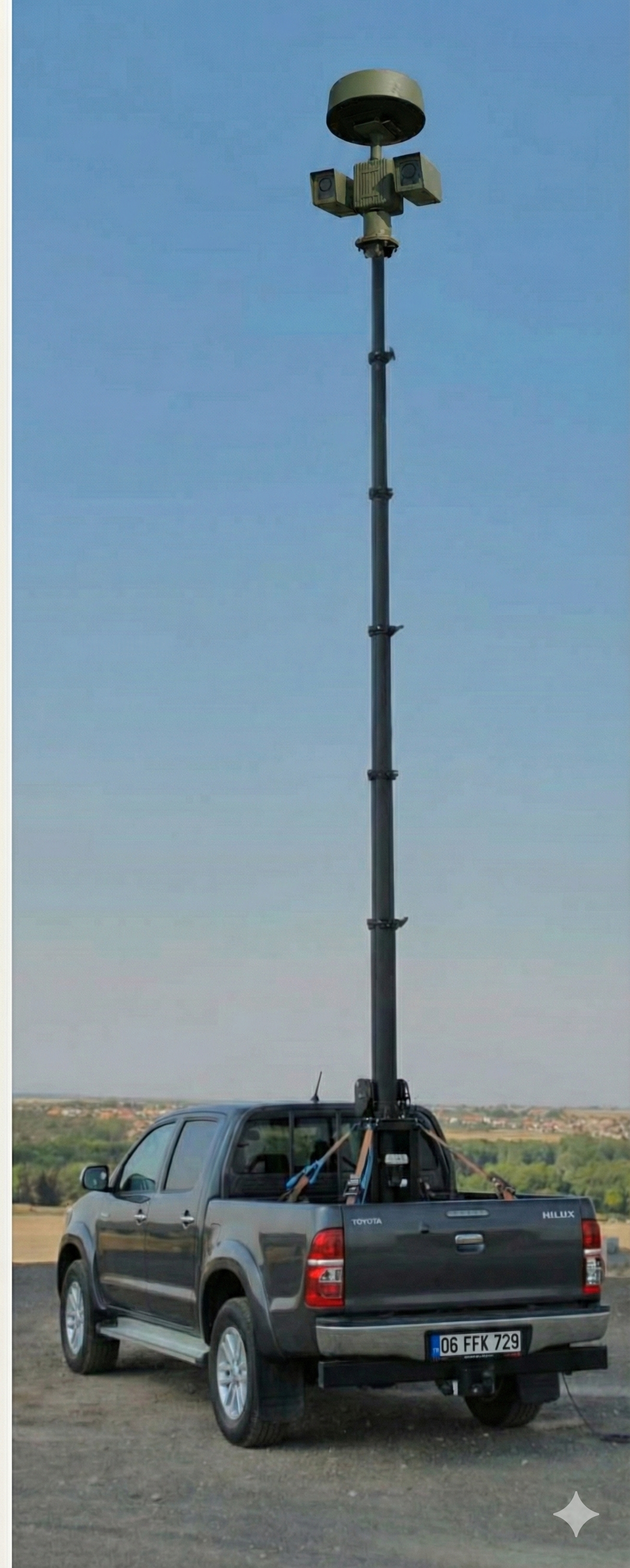

SynoSense Radar Sensor Head

SynoSense R-30

Radar Variant

The ultimate wide-area surveillance solution. Features a powerful X-Band Radar mounted alongside the dual-camera system on the mast.

  • 360° Scan: Continuous scanning radius for preliminary detection.
  • All-Weather: Proven performance in fog, rain, and sandstorms.
  • Range: Up to 30 km vehicle detection capability.

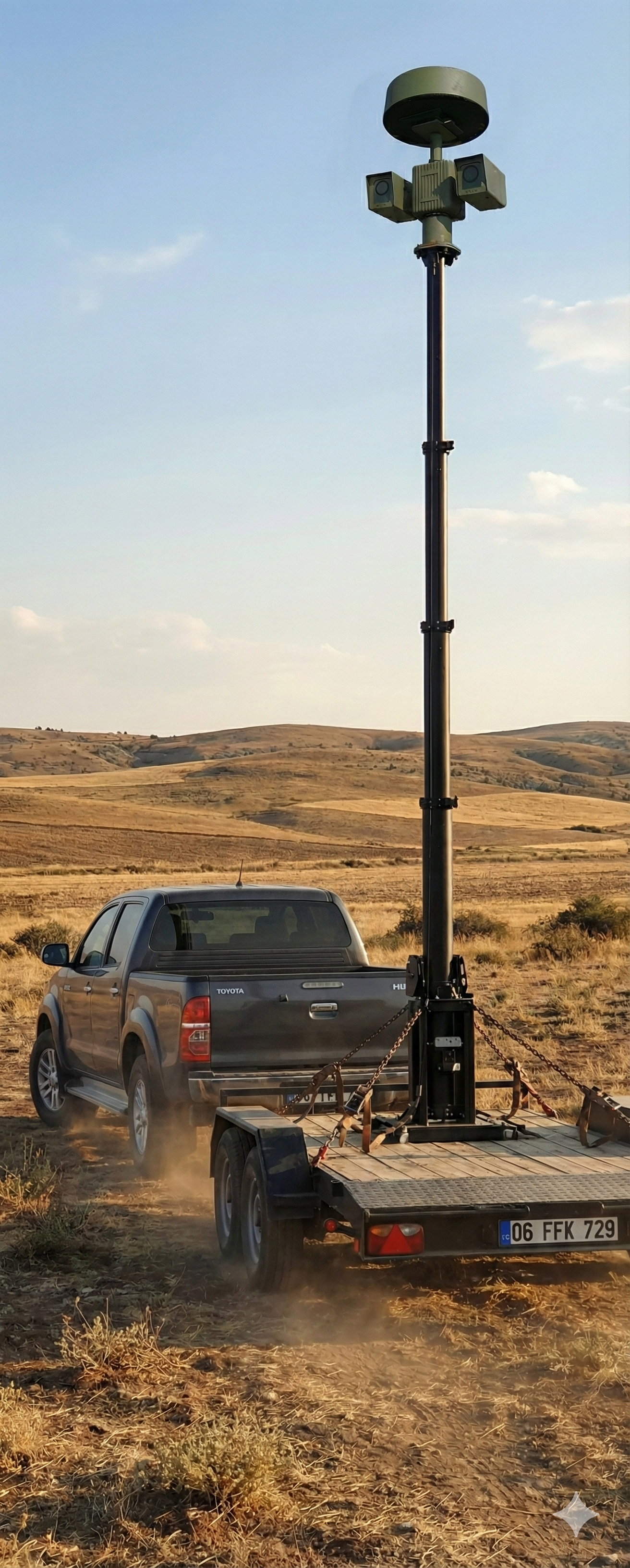

SynoSense Optic System Trailer

SynoSense Optic

LRF Variant

Designed for precision and passive operation. Replaces the radar with a Laser Range Finder (LRF) for exact target geolocation without radio emission.

  • Passive Surveillance: Ideal for stealth operations where radar emission is undesirable.
  • Precision Ranging: Get exact coordinates of visually identified targets.
  • High-Res Optics: Relies on the powerful Dual-Head Camera system.

Technical Specifications

Component Parameter Value
X-Band Radar (R-30 Variant)
Detection Ranges Walking Person (1 m²) 6 km
Group of Persons (5 m²) 9 km
Vehicle (10 m²) 30 km
System Scan Speed 2 - 4 - 8 rpm
Optical Payload (Both Variants)
Day Camera Type / Res CMOS / HD Resolution
Zoom / FOV 30x Optical Zoom
Thermal Camera Sensor Uncooled VOx (Cooled Optional)
Resolution 640 x 480
Lens 25-200mm Continuous Zoom
Optical Ranges Vehicle Detection 12,000 m (Optimal conditions)
General & Environmental
Protection Rating IP 67 (Operation: -30°C to +55°C)
Platform Fixed/Mobile Mast Up to 20m Mobile Tower or Fixed Pole

* Specifications subject to change without notice. All ranges represent optimal conditions.
